030 Series    030 YK 91A SERIES UNSEALED

SPECIFICATIONS Material Connector - Male Terninal - Female Terninal COPPER ALLOY Operating Temperature Range -40°C ~ +125°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 0.5mm2 (22AWG~20AWG) Maximum Electric Current 10A

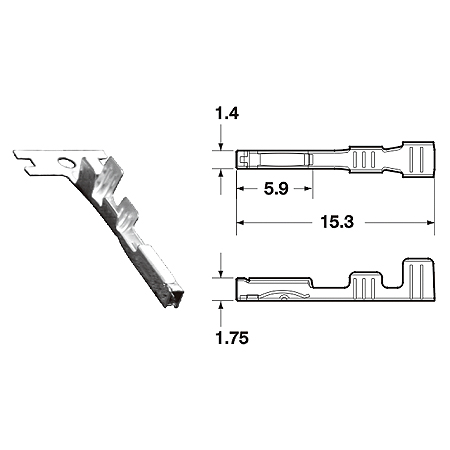

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0105 22-20 0.3-0.5 Copper Alloy Pre-Tin 7000 CDM-94128-S CDT-94128-S
