Other    LIGHTING SERIES

SPECIFICATIONS Material Connector - Female Terninal PHOSPHOR BRONZE OR BRASS Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~0.85mm2 (22AWG~18AWG) Maximum Electric Current 15A

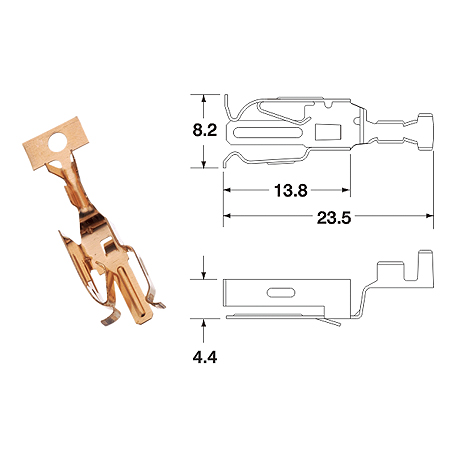

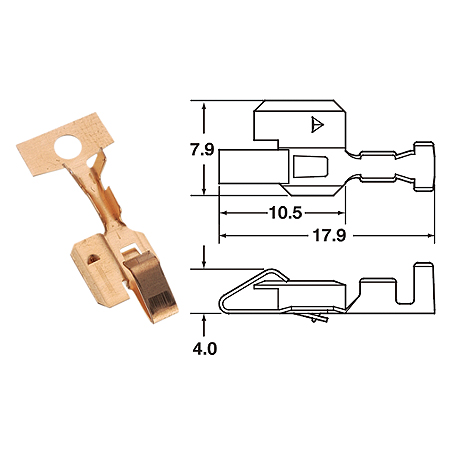

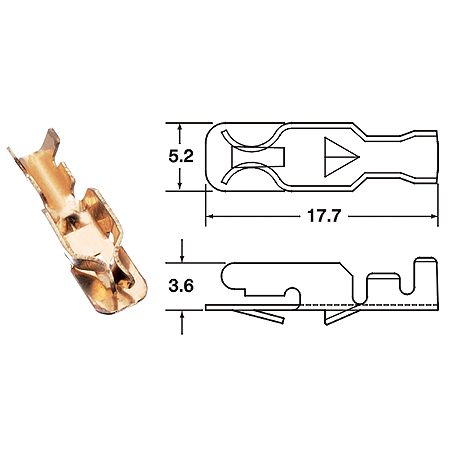

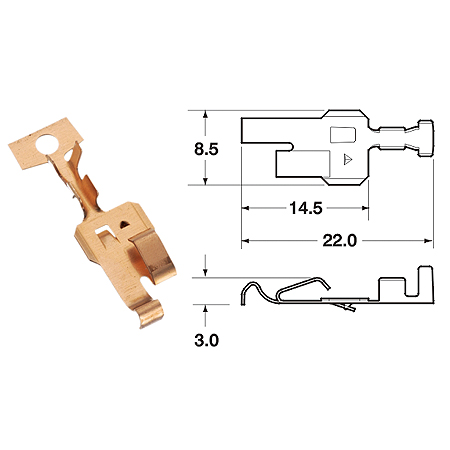

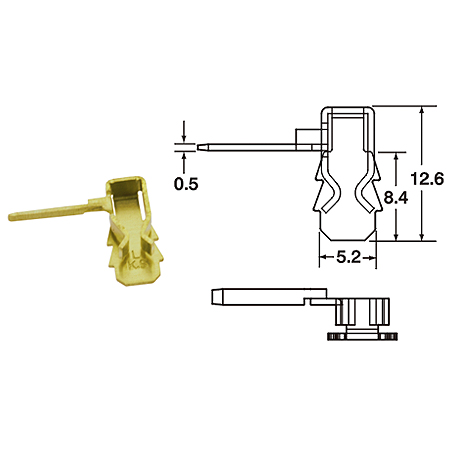

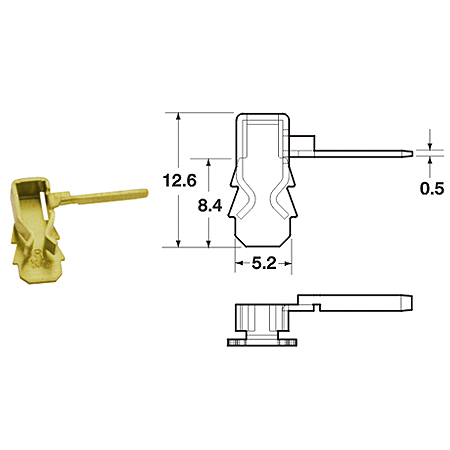

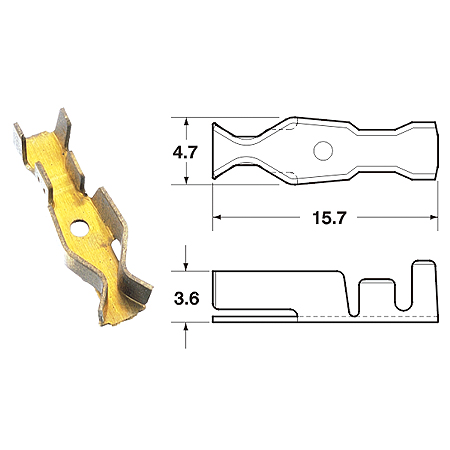

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1020A0001 20-18 0.5-0.85 Phosphor Bronze None 1500 CDM-98029-M CDT-98029-M ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1020A0005 20-18 0.5-0.85 Phosphor Bronze None 4000 CDM-98030-S CDT-98030-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1020A0010 20-18 0.5-0.85 Phosphor Bronze None 4000 CDM-98031-S CDT-98031-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1020A0015 20-18 0.5-0.85 Phosphor Bronze None 1000 CDM-98032-S CDT-98032-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 LS000-02B9 22-20 0.3-0.5 Brass None - CDM-98027-S CDT-98027-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 LS000-02P9 22-20 0.3-0.5 Phosphor Bronze None - CDM-98028-S CDT-98028-S ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0390L - - Brass None - - - ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1000A0391L - - Phosphor Bronze None - - -
