Other    AUTOMOBILE FUSE SERIES

SPECIFICATIONS Material Connector - Male Terninal - Female Terninal BRASS OR COPPER ALLOY Operating Temperature Range -40°C ~ +120°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~2.0mm2 (22AWG~14AWG) Maximum Electric Current 25A

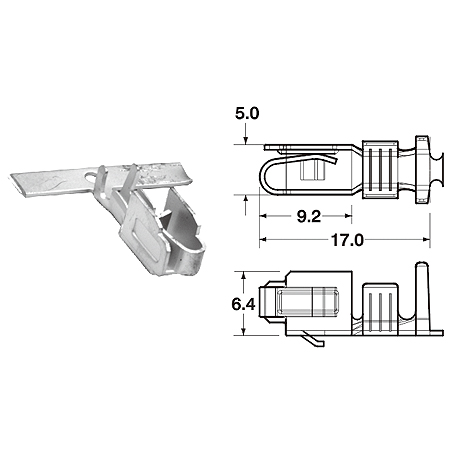

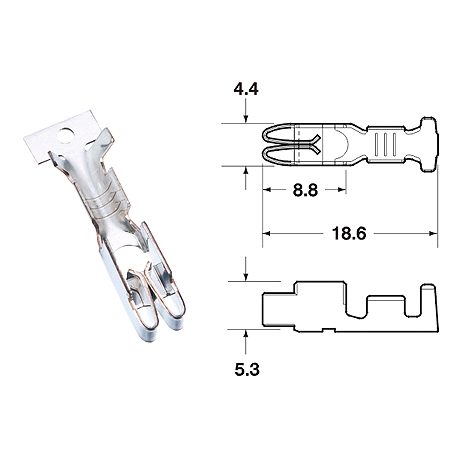

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1211A0140 22-20 0.3-0.5 Copper Alloy Pre-Tin 2000 CDM-94130-S CDT-94130-S 1211A0142 18-14 0.85-2.0 Copper Alloy Pre-Tin 2000 CDM-94130-L CDT-94130-L ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1200A0246 18-16 0.85-1.25 Brass None 2000 CDM-97002-M CDT-97002-M 1200A0247 16-14 1.25-2.0 Brass None 1500 CDM-97002-L CDT-97002-L 1201A0246 18-16 0.85-1.25 Brass Pre-Tin 1500 CDM-97002-M CDT-97002-M 1201A0247 16-14 1.25-2.0 Brass Pre-Tin 1500 CDM-97002-L CDT-97002-L 1205A0246 18-16 0.85-1.25 Brass Tin 2000 CDM-97002-M CDT-97002-M 1205A0247 16-14 1.25-2.0 Brass Tin 1500 CDM-97002-L CDT-97002-L
