025 Series    025 RS UNSEALED

SPECIFICATIONS Material Connector - Male Terninal BRASS Female Terninal - Operating Temperature Range -40°C ~ +100°C Voltage Drop 5mV/A Isolation Resistance - Dielectric Resistance - Applicable Wire Size 0.3mm2 ~ 0.5mm2 (22AWG~20AWG) Maximum Electric Current 10A

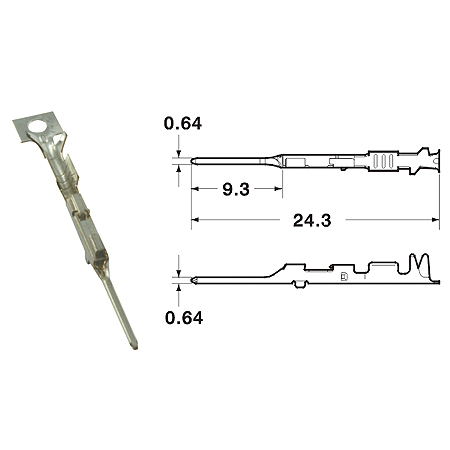

TERMINAL ITEM NO. WIRE RANGE MATERIAL PLATINGS Q'TY REEL APPLICATOR DIES A.W.G. mm2 1101A0045 22-20 0.3-0.5 Brass Pre-Tin 7000 CDM-96018-S CDT-96018-S
